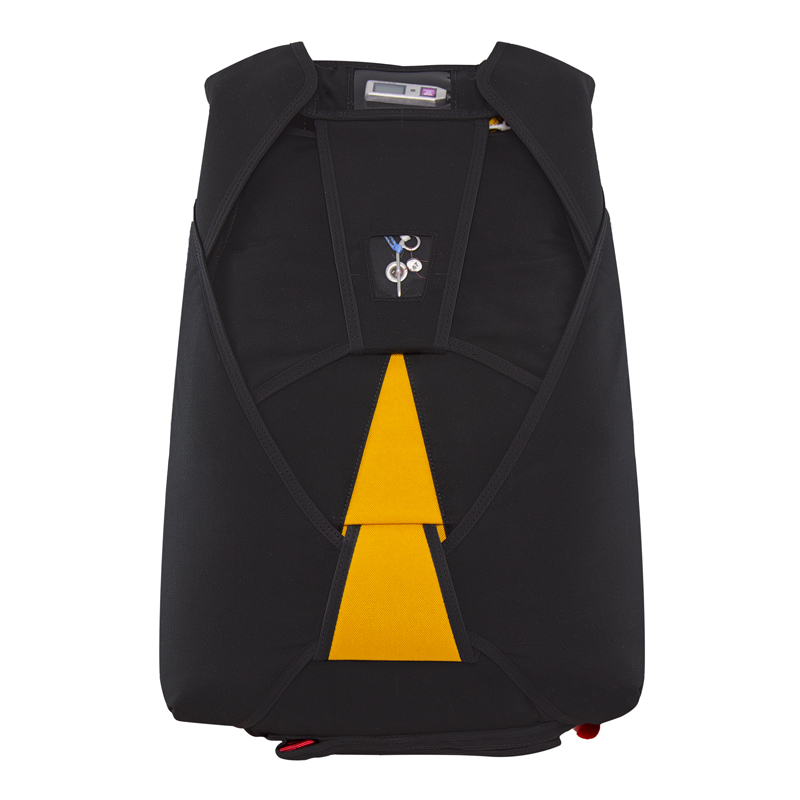

UPT Vector SE student skydiving container

CONFIGURED FOR YOUR STUDENT’S NEEDS

Whether you’re teaching static line, or AFF, throw out, or ripcord, the Vector SE has got your student covered. Built to the same high standards and demanding specifications as the Vector 3, it is user configurable to whatever you need and can be easily changed – making it perfect for a busy DZ with multiple training courses.

STANDARD FEATURES

The Vector SE comes loaded features, including: Magnetic Riser Covers, Hand Deployment bag, Metal D Handle, Reserve Pin Window, and our Skyhook RSL.

If you would like to configure it for other deployment methods, or customize it, check out the available options below.

AFF BOC and Static Line setup also available upon request.

UPT VectorSE features

SKYHOOK

Closely behind the three ring release system, the Skyhook RSL is one of the greatest skydiving innovations from UPT founder, Bill Booth.

Effectively using the malfunctioning main canopy as a pilot chute for the reserve, the Skyhook RSL dramatically speeds up the process of deploying a reserve canopy after cutting away a malfunctioning main canopy.

Due to the nature of its design, it is effective in both high, and low-speed malfunctions and is suitable for all types of jumping, including camera flying.

The Skyhook RSL is strongly recommended as an optional extra for all new Vector 3 containers.

Find out more about the Skyhook RSL by clicking HERE.

SIZES

UPT Vector SE container is available in the following sizes: V348, V350, V351, V352, V353, V354, V355, V357, V358, V360-1, V360-2, V360-3, V361, V362, V364, V364-1, V375, V378, V380, V382, V392, V392-2, V397.

VECTOR SE HISTORY

In 2002 UPT decided that an upgrade to the then Vector 2 student rig was required. We had already stopped production of the Vector 2 sport system, but we had continued to produce the Vector 2 student system as a low cost alternative to DZO™s, but we identified a need to keep up with the times and update to the latest technology of the day.

Engineering: We went about the design in the following fashion. First of all we wanted a container that was still cost effective, comfortable, easy to use and easy to maintain – while also utilizing the latest technology to ensure the safest container for low experience jumpers. Many other manufacturers had gone the route of adding student options to their sport rig, which is not very cost effective and is difficult to maintain, with features not necessarily beneficial to student operations.
Comfort: We based the backpad and yoke on our already popular Vector 3 container – we also added extra foam padding to the legpads with double wide webbing. The legpads also have a simple form of adjustment to fit a wider range of jumpers.
Cost: We purposely costed the container below that of our sport container. We were able to do this by simplifying the container without compromising safety and strength. For example, we changed the centre flap design to a 3 stripe instead of a 5 stripe design which saved an hour of production costs. We also removed the full wraparound corners of the main container, but still maintained excellent bridle protection. We reduced the amount of options available thus requiring less time in the production and inspection process.
Ease of use: We removed the internal riser covers to make packing simpler for inexperienced jumpers. We also added the reserve and AAD windows so instructors could perform more effective gear checks without opening flaps, especially useful in smaller aircraft. The external riser covers were designed to be easily replaced. All components are less expensive to replace, adding to your bottom line.
Technology and safety: The Skyhook system was made a standard feature on all SE containers. This is the latest greatest reserve deployment system. This feature adds to the wellbeing and confidence of the student after a cutaway, besides getting the reserve out in about 33 meters. This container is also built with UPT’s usual high standard of quality and support to ISO 9001:2000 standard.
